Instructions, tutorials and tools for assembly - FIELD connectors

Article author
Lorenzo Rouge
  • Updated

Many videos or assembly tutorials are available on our website or in our documentation.

This article will show you useful information relative to your products for their assembly.



USB FIELD connectors

Video Tutorial :

USB3FTV - Paper version: USB Field Catalog page 80



USBFTV and USBBFTV - Paper version: USB Field Catalog page 83


Insert removal tool: USBF ODE



RJ FIELD connectors

Video tutorial :

RJF - Paper version: Catalog RJ Field page 102

Insert removal tool : RJF ODE

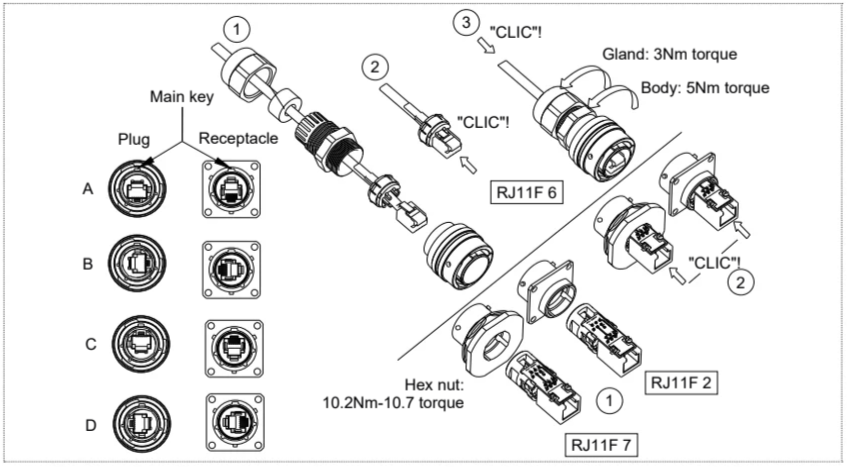

RJ11F - Paper version: Catalog RJ Field page 103

Insert removal tool : RJF11 ODE

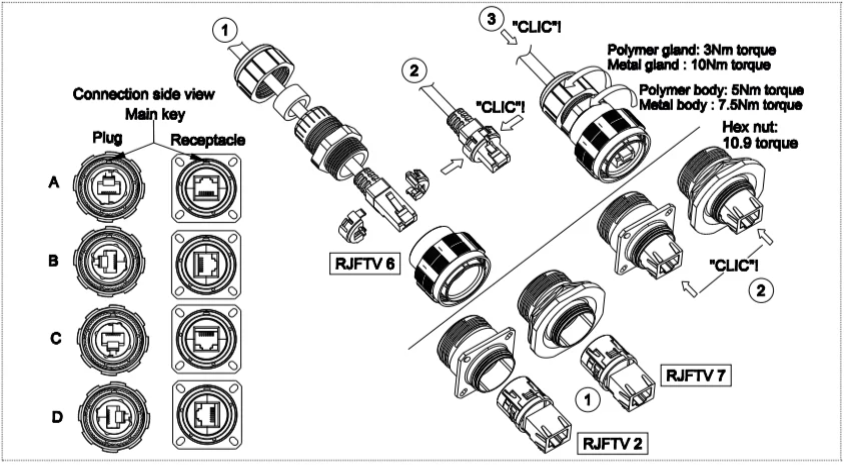

RJFTV - Paper version: Catalog RJ Field page 104

Insert Removal Tool: RJF ODE



RJFRB - Paper version: Catalog RJ Field page 105




LC FIELD connectors

Video Tutorial :

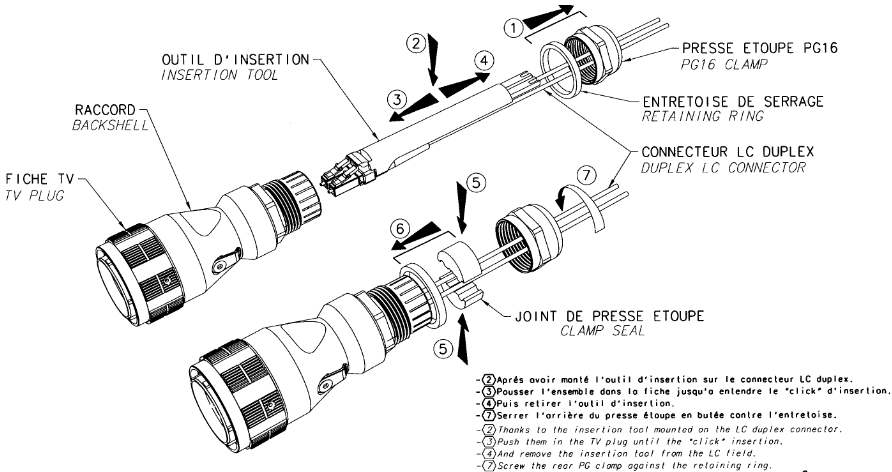

LCFTV 6 plug - Paper version :

Mounting :


Dismantling :

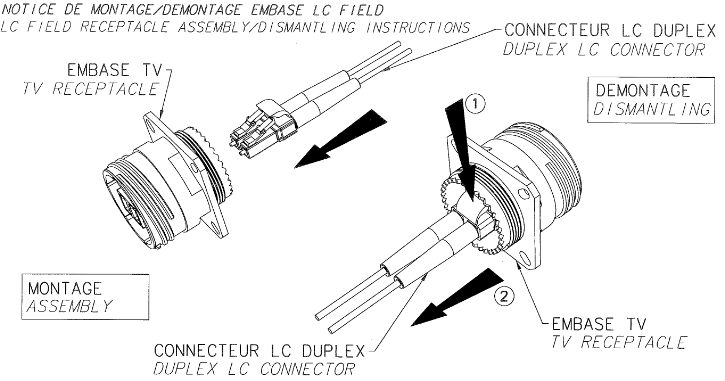

LCFTV 2&7 receptacles - Paper version :



LC FIELD Connector assembly tool: LCFTVMOTOOL

LC FIELD Connector removal tool: LCFTVDMTOOL

(You will need the assembly and removal tool to perform the disassembly operation)



HDMI FIELD connectors

Video Tutorial :

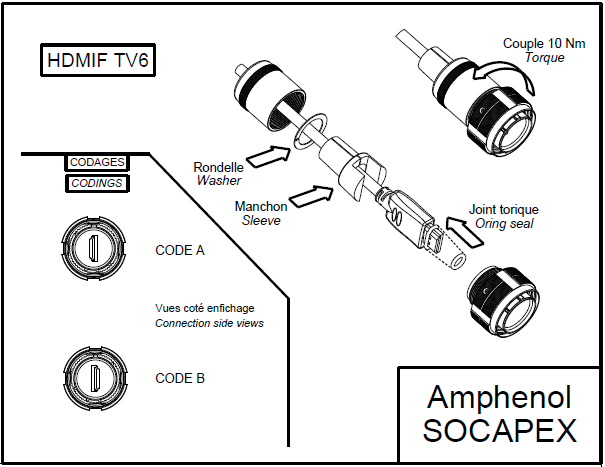

HDMI FTV6 plug - Paper instructions :


The receptacle is delivered assembled with its coding, according to the reference ordered.



MDP FIELD connectors

Video tutorial :

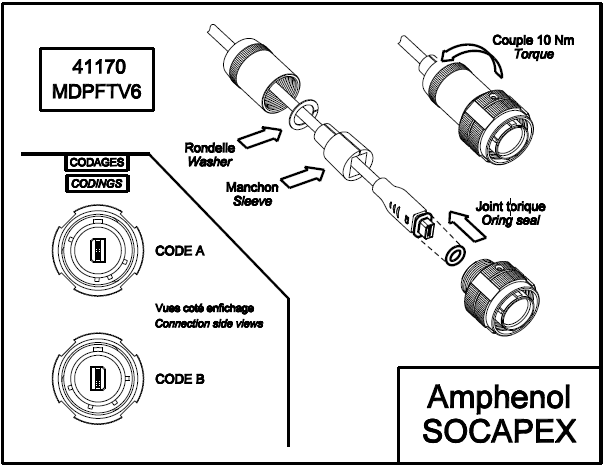

MDP FTV 6 plug - Paper notice :


The receptacle is delivered assembled with its coding, according to the reference ordered.



MPO FIELD connectors

Video tutorial:

MPO FIELD disassembly tool: 974-146605-91
