Backshell's tightening torque values - FIELD connectors

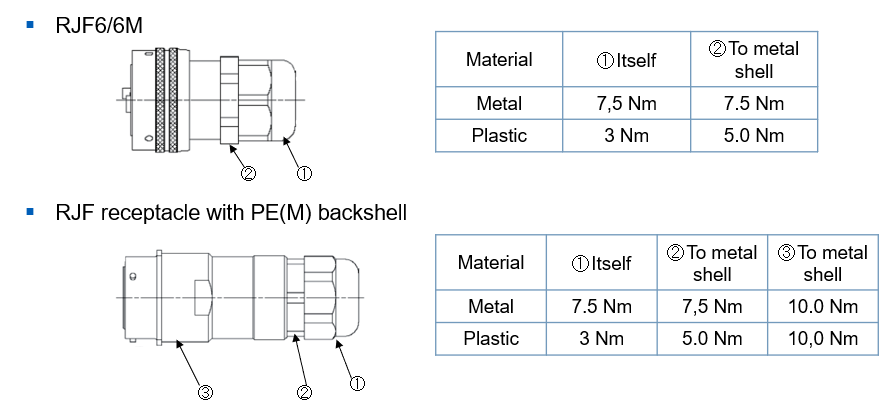

RJF series :

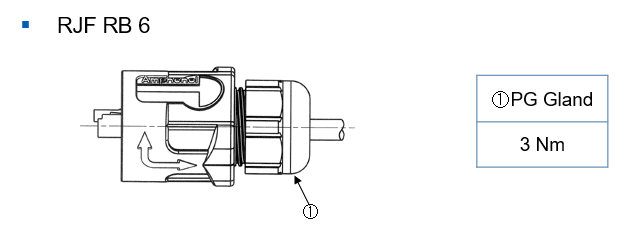

RJFRB series :

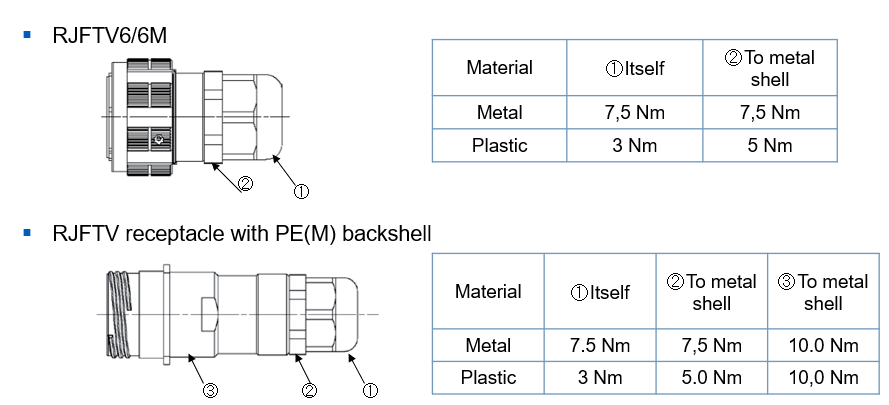

RJFTV series :

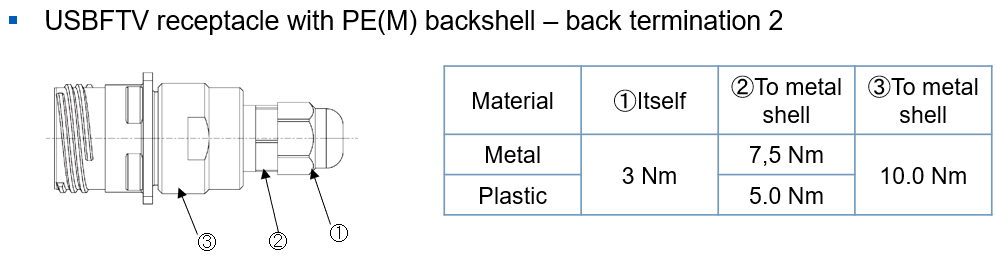

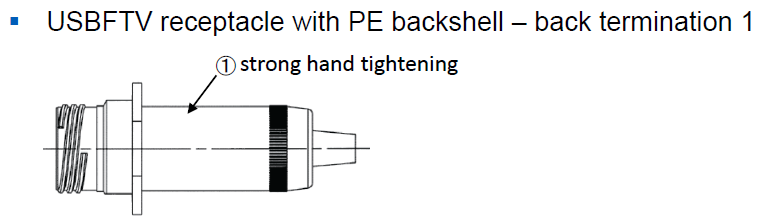

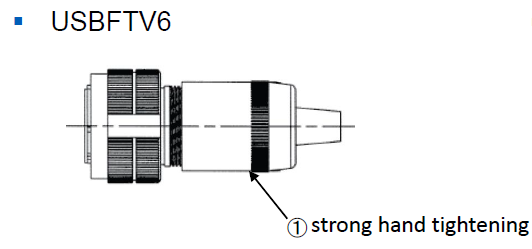

USBFTV series :






HDMI and MDP FIELD :





To find out how to apply torque, you can read our article: How should I proceed for tightening my backshell ? - Circular connectors
